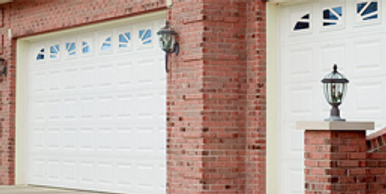

2216-17/4216

 Model 2216: Short panel, CFC free urethane insulated
Model 2217: Flush, CFC free urethane insulated
Model 4216: Long panel, CFC free urethane insulated


Features

  • Door exterior sections are formed from galvanized draw quality steel and the interior is 27-gauge steel
  • High-density CFC* free polyurethane injected core
  • Long-lasting durable rollers assure consistent, efficient operation
  • Heavy-duty 14-gauge hinges with “wide body” pattern for greater stability and longer life
  • Extra-heavy paint system consists of 0.25 mil. primer with rust  inhibitor and a 0.75 mil. coating of baked-on polyester paint in your  choice of white, almond, sandstone, brown, bronze, or evergreen
  • Concealed steel plates run continuously from top to bottom of each section for fastening hardware
  • >Optional Endurance and Appearance Package** upgrades available
  • White painted end stiles
  • Thermally-broken for optimum weather protection
  • Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
  • A continuous weather seal at the section joint assures mazimum protection from the elements
  • Model 2216 DASMA TDS-163 calculated R-value: 15.38***
  • Model 4216 DASMA TDS-163 calculated R-value: 15.41***
  • Model 2217 DASMA TDS-163 calculated R-value: 15.76***

* Chlorofluorocarbon (CFC) free
** Endurance and Appearance Packages are standard white, custom colors are available at an extra charge
*** Calculated door section R-value is in accordance with DASMA TDS-1

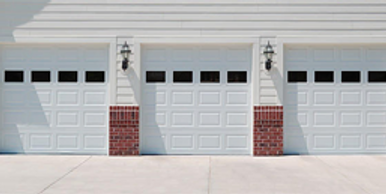

2240-41/4240-41

Model 2240: Short panel, uninsulated
Model 2241: Short panel, insulated
Model 4240: Long panel, uninsulated
Model 4241: Long panel, insulated

Features

   Door sections are formed from heavy, 24-gauge galvanized draw quality steel
   Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
   Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
   Long-lasting rollers assure consistent, efficient operation
   Inside stiles are made of galvanized steel and stile holes are “dimpled” for increased holding power
   Extension or torsion springs are individually computer-calibrated to lift your door
   Extra-heavy paint system consists of 0.25 mil. primer with rust inhibitor and a 0.75 mil. coating of baked-on polyester paint in your choice of white, almond, sandstone, brown, or evergreen
   Optional Appearance Package* upgrades available
   Hinges are stamped from galvanized steel in a “wide body” pattern for greater stability and longer life
   Optional automatic latching lock system opens easily from inside or outside
   Models 2241/4241 include 1-3/8” CFC** free polystyrene insulation with a vinyl back cover
   Models 2241/4241 DASMA TDS-163 calculated R-value: 6.62***

* Endurance and Appearance Packages are standard white, custom colors are available at an extra charge
** Chlorofluorocarbon (CFC) free
*** Calculated door section R-value is in accordance with DASMA TDS-163

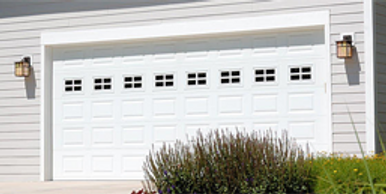

2250-51-55/4250-51-55

 Model 2250: Short panel, uninsulated
Model 2251: Short panel, 1-3/8” insulated
Model 2255: Short panel, 9/16” insulated
Model 4250: Long panel, uninsulated
Model 4251: Long panel, 1-3/8” insulated
Model 4255: Long panel, 9/16” insulated


Features

  • Door sections are formed from 25-gauge galvanized draw quality steel
  • Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
  • Inside stiles are made of galvanized steel and stile holes are “dimpled” for increased holding power
  • Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
  • Extension or torsion springs are individually computer-calibrated to lift your door
  • Extra-heavy paint system consists of 0.25 mil. primer with rust  inhibitor and a 0.75 mil. coating of baked-on polyester paint in your  choice of white, almond, sandstone, or brown
  • Hinges are stamped from galvanized steel in a “wide body” pattern for greater stability and longer life
  • Models 2251/4251 include 1-3/8” polystyrene insulation with a vinyl back cover
  • Models 2255/4255 include 9/16” polystyrene insulation with a vinyl back cover
  • Models 2251/4251 R-value: 6.85
  • Models 2255/4255 R-value: 3.29

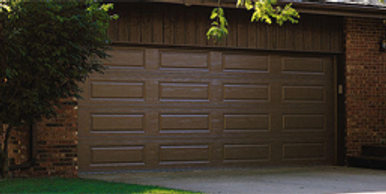

2283-84

Model 2283: Short panel, insulated
Model 2284: Flush, insulated

Features

   Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
   Long-lasting rollers assure consistent, efficient operation
   Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
   Concealed steel plates run continuously from top to bottom of each section for fastening hardware
   Extension or torsion springs are individually computer-calibrated to lift your door
   Extra-heavy paint system consists of 0.25 mil. primer with rust inhibitor and a 0.75 mil. coating of baked-on polyester paint in your choice of white, almond, or sandstone
   Glass options are available in clear glass (1/8” and 7/16”) or Lexan glass (1/8” only)
   Hinges are stamped from galvanized steel in a “wide body” pattern for greater stability and longer life
   Optional automatic latching lock system opens easily from inside or outside
   Double sided steel doors are 2” thick
   Raised panel (Model 2283) R-value: 8.07
   Flush panel (Model 2284) R-value: 8.72

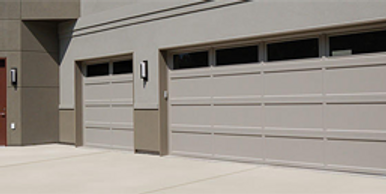

2285-86/4185

Model 2285: Short panel, insulated
Model 4285: Long panel, insulated
Model 2286: Flush, insulated

Features

   Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
   Long-lasting rollers assure consistent, efficient operation
   Heavy-duty 14-gauge hinges with “wide body” pattern for greater stability and longer life
   Extension or torsion springs are individually computer-calibrated to lift your door
   Extra-heavy paint system consists of 0.25 mil. primer with rust inhibitor and a 0.75 mil. coating of baked-on polyester paint in your choice of white, almond, sandstone, brown, bronze, silver, or evergreen
   Concealed steel plates run continuously from top to bottom of each section for fastening hardware
   White, powder-coated hardware is available as an option
   White painted end stiles
   Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
   Optional automatic latching lock system opens easily from inside or outside
   Double sided steel doors are 2” thick
   Raised panel (Model 2285/4285) R-value: 8.07*
   Flush panel (Model 2286) R-value: 8.72*

* Calculated in accordance with ASHRAE standard formulas

2294-96-98

Model 2298: Short Panel, Insulated
Model 2296: Combination Panel, Insulated
Model 2294: Long Panel, Insulated

Features

   2” thick door exterior sections are formed from 25-gauge galvanized draw quality steel and the interior is 27-gauge steel
   Aluminum wood grain embossed overlays come pre-finished in the same color as the door and are mechanically and chemically fastened to the door
   Extra-heavy paint system consists of 0.25 mil. primer with rust inhibitor and a 0.75 mil. coating of baked-on polyester paint in your choice of white, almond, or sandstone
   Optional glass is available in clear glass or glue chip pattern
   High-density CFC* free polyurethane injected core
   Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
   Optional Endurance and Appearance Package** upgrades available
   Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
   Long-lasting durable rollers assure consistent, efficient operation
   All models DASMA TDS-163 calculated R-value: 11.40***

* Chlorofluorocarbon (CFC) free ** Endurance and Appearance Packages are standard white, custom colors are available at an extra charge *** Calculated door section R-value is in accordance with DASMA TDS-163
